This week Armed to Farm Program Director Margo Hale shares information about the farm watering and hay-feeding systems she and her family use on their farm. The information below is a slightly edited version of a blog post on our NCAT page here<https://www.ncat.org/farm-equipment-and-infrastructure/>.

Farm Equipment and Infrastructure

I want to share with you a few pieces of infrastructure and equipment we have on our farm, why they work for us, and ways they don’t work. I always find it helpful to see how other farmers feed and water their animals. Maybe you will get ideas that you can implement on your farm—or you can send me ideas for improvement.

Watering Systems

When you are getting started with livestock, providing water is one of the first things you must figure out. On our farm we have a pond, a well, and county water. We also collect rainwater from our barn and sheds. We use all these resources to water our animals on different parts of our farm, depending on how we have our pastures divided and animals separated.

We try to find cost-effective ways to do most everything on our farm, so we like to use recycled materials and captured rainwater as much as possible. In one of our pastures, we have gutters on part of a shed and small shelter that empty into a tub. One of our friends had new gutters installed on her house and gave us the old gutters to use around the farm.

[Barn with gutter attached]



[White water tubs for livestock]

We did have a regular stock tank here, but it was too tall for our young goats to reach. We had an old IBC tote that we weren’t using, so we cut it in half to use as a waterer. This works great for the goats, but when cows are in this pasture, they tend to stand in these low totes, dirtying the water. It doesn’t take much rainfall to fill this water tub. We do have a water hydrant nearby that we can use to fill the tubs if there hasn’t been enough rainfall.

[Metal barn with barrel for water catchment and gravity-fed bowl waterer.]

We have a small pasture next to our barn that we use when we have pigs and when our goats are kidding. Our free-range laying hens like to hang out in the barn, so they use this waterer, too. There is a 55-gallon barrel that captures rainwater and fills the bowl waterer, pictured above. The gravity-fed bowl is mounted over a small concrete pad, so the animals (pigs especially) don’t make a muddy mess around the waterer. We don’t often graze our cows in this small pasture, but when we do, this waterer doesn’t work too well. Several cows can empty that 55-gallon barrel quickly!

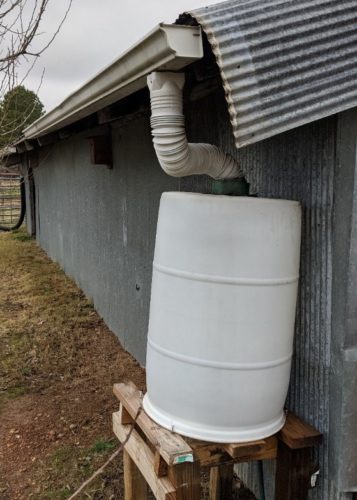

[https://www.ncat.org/wp-content/uploads/2020/12/image5-1-357x500.jpeg]<https://www.ncat.org/farm-equipment-and-infrastructure/image5-1/>
This 55-gallon drum supplies water for pigs, chickens, and sometimes goats.

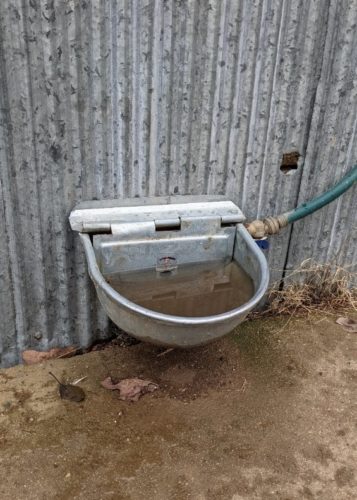

[https://www.ncat.org/wp-content/uploads/2020/12/image4-1-357x500.jpeg]<https://www.ncat.org/farm-equipment-and-infrastructure/image4-1-2/>
Gravity-fed bowl waterer.

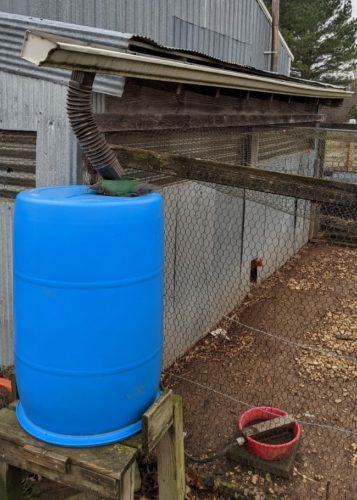

[https://www.ncat.org/wp-content/uploads/2020/12/image8-1-357x500.jpeg]<https://www.ncat.org/farm-equipment-and-infrastructure/image8-1/>
This 55-gallon drum supplies captured rainwater to our chickens.




We use a similar set-up at our chicken coop (pictured above). We have a coop with nest boxes and an enclosed run built on the back side of our shop. The hens have free range of our pastures, but we shut them in the coop at night. Once again, we use gutters on their coop roof, draining in to an elevated 55-gallon barrel. There is a hose from the barrel to a water bowl with a float. Our winters are fairly mild so we can use this system year-round. On occasion, the bowl and hose freeze and we have to carry water to the chickens. We have used this for our flock of about 20 chickens for about seven years, and I’ve only had to put water in the barrel a couple of times.

Hay-feeding Systems

We are in hay-feeding season on our farm, so I will share with you the equipment we use to feed hay.

[A metal hay feeding ring with goats standing on the hay inside.]

We use a hay ring (above) to feed our cows, but this is problematic if you have goats or sheep. We have a few young goats with our cows right now to keep them away from our billy. They prefer to eat standing on top of the hay, soiling the hay and causing a lot of waste.

[Elevated round bale feeder with goats eating hay.]

We have an elevated, round bale feeder that we use for our goats. This keeps the hay off the ground and the goats cannot get on top of it. The cows can easily eat out of it, too. This reduces the amount of hay they waste.

[Elevated square bale feeder with goats eating hay.]

We also have an elevated square bale feeder. We don’t feed many square bales (remember we want low labor) but do use them when we have goats in a small pasture right after they have kidded or are just feeding a few goats. Once again, keeping the hay off the ground reduces waste.

We move the hay feeders to a different spot each time we feed a bale, typically feeding on an area that needs some extra fertility. There are many ways to feed hay, but this is what works for us on our farm. Unrolling round bales is a great practice, but we don’t have enough animals for that to be efficient. They would waste too much before eating most of the bale. We have rolled out smaller portions of a round bale, but that was time-consuming.

Learning More

There is always trial and error before you figure out what systems work on your farm. I hope this virtual tour of our farm’s watering and hay-feeding systems will help you find what will fit your situation.

The ATTRA Sustainable Agriculture<https://attra.ncat.org/> publications linked below have information about infrastructure and equipment for different livestock enterprises. As always, our NCAT Livestock Specialists are available to answer your questions and provide you with additional resources. Please email or call us at askanag at ncat.org<mailto:askanag at ncat.org> or 800-346-9140.

ATTRA Resources

Small-Scale Livestock Production<https://attra.ncat.org/product/small-scale-livestock-production/>

Sheep and Goats: Frequently Asked Questions<https://attra.ncat.org/product/sheep-and-goats-frequently-asked-questions/>

An Illustrated Guide to Sheep and Goat Production<https://attra.ncat.org/product/an-illustrated-guide-to-sheep-and-goat-production/>

Hogs: Pastured and Forested Production<https://attra.ncat.org/product/hogs-pastured-or-forested-production/>

Hooped Shelters for Hogs<https://attra.ncat.org/product/hooped-shelters-for-hogs/>

Poultry: Equipment for Alternative Production<https://attra.ncat.org/product/poultry-equipment-for-alternative-production/>

Intensive Grazing: One Farms Setup (video series: Nine Chapters)<https://attra.ncat.org/intensive-grazing-one-farms-set-up-ch-1-introduction/>

Managed Grazing Tutorial<https://attra.ncat.org/tutorials/>
